Handicap Accessible RV / Motorhome

Inspire

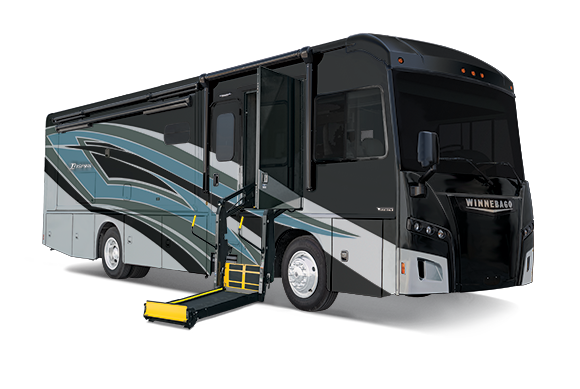

One of the few mid-entry diesel pusher motorhomes on the market, the upscale Inspire® is ideally suited for Winnebago’s accessibility enhancements. Designed to take full advantage of the 340-hp Freightliner® XCS chassis, the Inspire delivers a smooth, well-mannered ride with more luxury, space, and power. And like all Winnebago diesel pushers, the Inspire comes with a 3-year/100,000 mile warranty.

⛶ BROCHURE

Specifications:

EXTERIOR

Exterior Length: 35'9"
Exterior Height: 11'11"
Exterior Width: 8'5.5"
Exterior Storage: 153 (cu. ft.)
Awning Length: 17'
Interior Height: 6'8"
Interior Width: 8'0.5"
Freshwater Tank Capacity: 84 (gal.)
Water Heater Capacity: 10 (gal.)
Holding Tank Capacity — Black: 48 (gal.)
Holding Tank Capacity: — Gray: 54 (gal.)
LP Capacity: 23 (lbs.)
Fuel Capacity: 90 (gal.)
GCWR: 30,000 (lbs.)
GVWR: 26,000 (lbs.)
GAWR - Front: 10,410 (lbs.)
GAWR - Rear: 17,500 (lbs.)
Wheelbase: 208"
Sleeps: 5

CHASSIS

Freightliner XCS 26,000-lb. chassis, Allison® 6-speed automatic 2100 MH transmission
340-hp Cummins® ISB 6.7L
NeWay® front air suspension
V-Ride rear air suspension
OptiView™ dash, digital instrument panel cluster
160-amp. alternator
Air brakes w/ABS
Engine exhaust brake
Rear cap engine intake screen
Automatic hydraulic leveling jacks
7-pin trailer wiring
Trailer Hitch6 10,000-lb. drawbar/500-lb. maximum vertical tongue weight
Stainless steel wheel liners
Slide room lock system
Information display center

CAB CONVENIENCES

Cab seats adjustable arm rests, swivel, fixed lumbar support, and multi-adjustable recline
Lounger passenger cab seat w/footrest and flip-up workstation
6-way power assist driver & passenger seat pedestal
3-point seat belts
Radio/Rearview Monitor System w/10.1" LCD color touch screen, handheld remote, rear color camera, Sirius-XM®-ready, USB input, HDMI/MHL connectivity
Cruise control
12-volt power supply for CB radio
Powered MCD blackout roller visor/shade (front windshield)
MCD blackout roller shade (driver and passenger windows)
Chassis/house battery radio power switch
Power mirrors w/defrost and sideview camera
Power steering
TRW® tilt/telescopic steering column w/foot-actuated pedal
SiriusXM® (includes 90-day trial subscription receiver, remote, antenna)
JBL premium audio tuned 360-watt amplifier with 5 speakers including subwoofer

INTERIOR

39" HDTV
RestEasy® loveseat
BenchMark® Dinette
Satellite system ready
Multi-plex wall switches
Digital TV amplified antenna system
Home theater sound bar system
Blu-ray™ disc player
LED ceiling lights
MCD blackout roller shades
Soft vinyl ceiling
OnePlace® systems center
Tinted, dual-glazed coach windows
Dual pane, frameless windows
Powered ventilator fan (galley)
Assist bar
Vinyl flooring throughout
USB chargers (cab, lounge, bedroom)
Washer/Dryer
MCD solar/blackout roller shades
Firefly Switch Panel lights up when dark
Wider aisleway for accessibility
BraunAbililty® Century-2 wheelchair lift
Air-assisted, power wheelchair lift door with remote controls

Optional Equipment:

StudioLoft™

GALLEY

Corian® countertops and sink cover
2-door residential refrigerator/freezer, icemaker w/flip travel latch
Microwave/convection oven w/range fan and touch control
3-burner range top w/storage below
Glass bi-fold range cover
Pantry
Countertop with flip-up extension

BATH

Roll-in shower with adjustable height shower head and vertical assist bar
Skylight
Porcelain toilet with foot pedal and sprayer
Powered roof vent(s)
Medicine cabinet
Linen cabinet
Tissue holder
Towel bar(s)
Towel ring(s)

Optional Equipment:

Wall-mount shower bench seat

BEDROOM

32" HDTV
Queen InnoMax® Eurotop Freedom air mattress w/controllers
Head of bed power raises/lowers
Bedspread and pillow shams
Headboard
Wardrobe
Induction chargers in nightstand

HEATING & COOLING SYSTEM

2-13,500 BTU air conditioners (1 A/C, 1 A/C w/heat pump)
35,000 BTU ducted furnace

EXTERIOR

Powered patio awning w/LED lighting
2nd powered patio awning w/LED lighting
Exterior compartment 110-volt duplex, TV antenna and 3-way A/V receptacles
KeyOne® lock system
LED porch light w/Interior switch
Lighted storage compartments
Automatic entrance steps
Assist handle
Lower front protective mask
Pet Pal leash tie down
Premium high-gloss sidewall skin
QuickPort service connection hatch
Undercarriage lighting
Exterior entertainment center w/32" HDTV

ELECTRICAL SYSTEM

Service Center cable TV input, 50-amp power cord, shoreline/generator automatic changeover switch, portable satellite hookup
2,000-watt inverter/charger w/remote panel with coach battery disconnect switch
6,000-watt Cummins Onan® generator
Auxiliary start circuit
AC/DC electrical distribution system
4 deep-cycle Group 31 Marine/RV batteries
Battery disconnect system (coach and chassis)
PowerLine® Energy Management System
Automatic dual-battery charge control
Automatic generator start system
Wi-Fi router signal booster

PLUMBING SYSTEM

Service Center pressurized city water hookup w/diverter fill, freshwater drain, drainage valves, exterior wash station w/pump switch, holding tank flushing system, 20' sewer hose
On-demand water pump
TrueLevel™ holding tank monitoring system
Permanent-mount LP tank w/gauge
Heated holding tank compartment
Water system winterization package
Water system filtration package
TruTank Level Sensor
Tankless water heater with recirculation pump

SAFETY
